| Place of Origin: | China |
|---|---|
| Brand Name: | Yiyuan |
| Certification: | OHSAS 18001, ISO 14001, |
| Minimum Order Quantity: | 1KM |
| Price: | Negotiation |
| Packaging Details: | Wood coil strand |
| Delivery Time: | 30 working days after received your payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500000km/month |
| Product Name: | Armored Fiber Optic Cable | Number Of Cores: | 2~288 Core |
|---|---|---|---|
| OEM: | Accepted | Application: | Outdoor Duct |
| Outer Sheath: | PE/HDPE/AT | Brand Name: | Yiyuan |
| Color: | Black Or Customized | Strength Member: | Steel Wire |
| Place Of Origin: | China | Package: | Plywood Reel/customized |
| High Light: | GYTA33 Armored Fiber Optic Cable,outdoor armored fiber optic cable,PE outdoor single mode fiber optic cable |
||

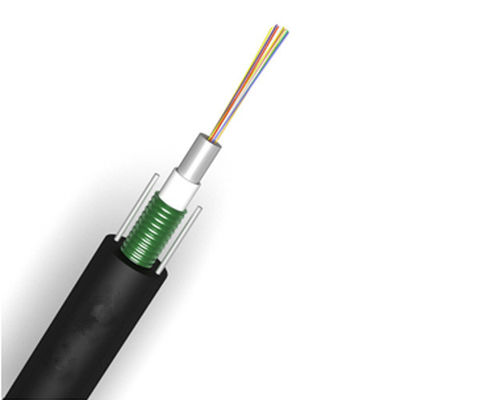

GYTA333 Outdoor Armored Fiber Optic Cable Anti Mouse Anti Corrosion Single Mode 4 288 Core
a: Characteristics

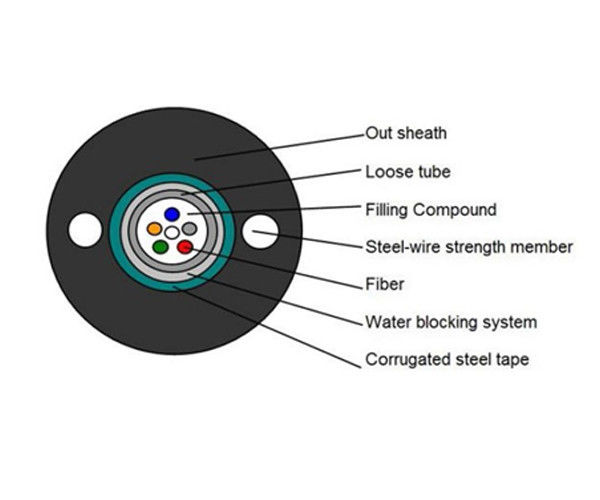

1) The two parallel round steel wires enhance tensile strength and crush resistance
2) Good mechanical performance , jacket with good ultra violet resistant property
3) Small outer diameter , lightweight , tight structure ,excellent bending property
and suitable to installation and operation
b: Application
• Interbuilding voice or data communication backbone.
• Installed in duct, underground conduit .
C:Specification
| Fiber Count | 2,4,6,8 | 10,12 | |
| Outer Diameter(mm) | 8.3 | 9 | |
| Nominal weight(kg/km) | 66 | 82 | |
| Max tensile strength(N) |
short-term | 1500 | |
| Long-term | 600 | ||
| Min.Bending Radius |
Dynamic | 20D | |
| Static | 10D | ||
| Max.Crush Resistance(N/10mm²) | 3000 |
||
