| Place of Origin: | China |
|---|---|
| Brand Name: | Yiyuan |
| Certification: | OHSAS 18001, ISO 14001, ISO 9001 |
| Minimum Order Quantity: | 1KM |
| Price: | Negotiation |
| Packaging Details: | Wood coil strand |
| Delivery Time: | 30 working days after received your payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500000km/month |
| Product Name: | Custom Fiber Optic Cable | Number Of Cores: | 4-144 Core |
|---|---|---|---|
| Keyword: | Custom Fiber Optic Cable | OEM: | Accepted |
| Application: | Outdoor Duct, Outdoor Aerial | Jacket Material: | PE PVC |
| Brand Name: | Yiyuan | Certification: | ISO 9001;ISO 14001;OHSAS 18001 |
| Place Of Origin: | China | Installation: | Self-supporting Aerial |
| Package: | Wood Coil Strand | ||
| High Light: | GYFTY53 Custom Fiber Optic Cable,652D Custom Fiber Optic Cable,Armored Fiber Optic Cable |
||

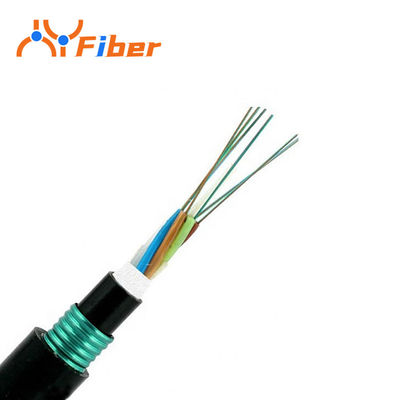

GYFTY53 Custom Fiber Optic Cable Single Sheath Armored Fiber Optic Cable
GYFTY53 direct buried Steel armoured cables
1. Cable structure
2. Cable Type: OFC-Armored GYFTY53 .652D-Direct buried -HDPE
Technical Characteristics
In the GYTY53 cable, single-mode/multimode fibers are positioned in the loose tubes, the tubes are filled with water blocking filling compound.Tubes and fillers are stranded around the strength member into a circular cable core. Then the cable is completed with a PE sheath. Which is filled with the filling compound to protect it. After PSP is applied over the inner sheath, the cable is completed with a PE outer sheath.
Construction:
1. Optical Fiber
2. Tube Filling Compound
3. Loose Tube
4. Cable Filling Compound
5. PE Inner Sheath
6. Water-blocking Tape
7. PSP Armored
8. PE Outer sheath
9. Steel Wire Strength Member
10. Fillers
Dimension and Properties
| Fiber count | 2-8 | 12 | 24 | 36 | 48 | 72 | 96 | 144 |
| Max. No of loose tube / filler No. | 1/5 | 2/4 | 4/2 | 6/0 | 4/2 | 6/0 | 8/0 | 12/0 |
| Fiber No. per tube | 6 | 12 | ||||||
| Loose tube diameter | 2.0mm | 2.2 | ||||||
| Central strength member diameter (FRP or steel wire ) | 2.0mm | 2.4mm | PE+FRP | |||||
| Outer sheath thickness | 1.8mm | |||||||
| Cable OD mm | 9.0 | 9.0 | 9.0 | 10.0 | 10.8 | 11.5 | 13.3 | 17.5 |
| Cable weight kg/km | 130 | 130 | 135 | 135 | 145 | 150 | 160 | 185 |
| Operation temperature range | -40 d℃ to + 70 ℃ | |||||||
| Installation temperature range | -40 ℃ to + 70 ℃ | |||||||
| Transport and storage temperature range | -40 ℃ to + 70 ℃ | |||||||
