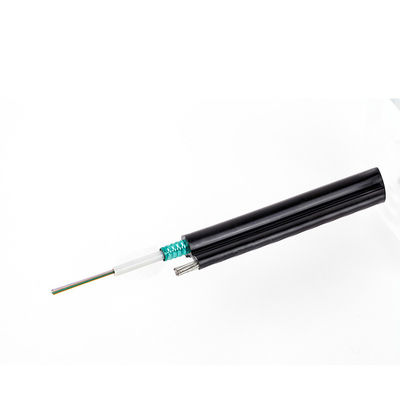

Duct Non Metallic Fiber Optic Cable 4-144 Core Stranded Outdoor Cable

Basic Information
Place of Origin: China
Brand Name: Yiyuan
Certification: OHSAS 18001, ISO 14001, ISO 9001
Minimum Order Quantity: 1KM
Price: Negotiation
Packaging Details: Wood coil strand
Delivery Time: 30 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 500000km/month
Product Name: Non Metallic Fiber Optic Cable Number Of Cores: 2-144 Core
Outer Sheath Material: PE OEM: Accepted
Application: Outdoor Duct/outdoor Cable/aerial/lashed Brand Name: Yiyuan
Certification: ISO 9001;ISO 14001;OHSAS 18001 Color: Black Or Customized
Number Of Conductors: ≥ 10 Place Of Origin: China
Installation: Self-supporting Aerial Fiber Type: Single Mode
High Light:

288 fibers Non Metallic Fiber Optic Cable


GYFTY Non Metallic Fiber Optic Cable


36B1 duct optical fiber cable

Duct Non Metallic Fiber Optic Cable 4-144 Core Stranded Outdoor Cable


Product Description:

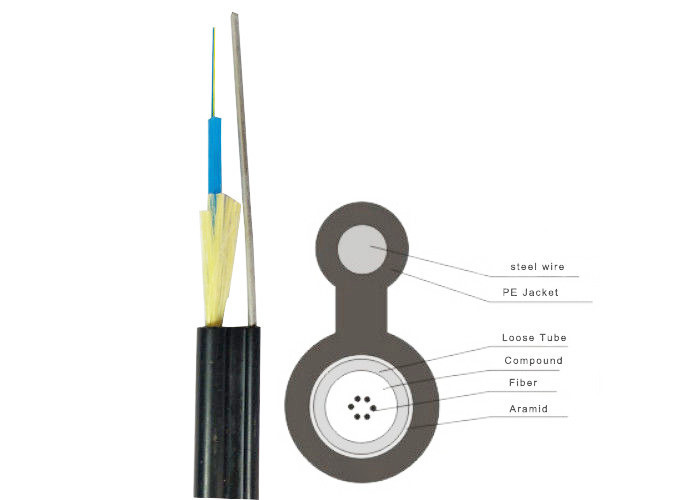

The fibers,250μm,are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The two sides PSP are longitudinally applied over the outer loose tube. Steel wires and loose tubes filled with water proof compound to ensure compact and longitudinally water blocking ,this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure.


Technical characteristics:

Excellent tensile strength for such small diameter

Low dispersion and attenuation

Proper design, precise control for fiber excess length render the cable excellent mechanical and environmental

Small cable diameter, light cable weight, easily to install

Recommended span length 50m for 1.6 steel wire messenger



  1. Adopted to Outdoor distribution.
  2. Suitable for aerial duct and buried method.
  3. Long distance and local area network communication.

Used for Rural communication, local trunk line and UCATV & computer networks system

Method of installation:

Direct burial preferred, other methods of installation are also available.

Mechanical & Environmental Characteristics

Item Characteristics
Operation temperature -40℃~ + 70℃
Storage temperature -40℃~ + 60℃
Sheath Material P:PE
Dimensional Characterstics
Fiber count Outer sheath Cable dia.(mm) cable height(mm) Messenger wire (mm) cable net weight (kg/km) strength short term(n) crush pressure short term (n/100mm) crush pressure short term(n/100mm)
2~12 PE 5 10.1 1.6 47 1000 1000 1000



Model Number GYXTC8Y
Type Coaxial
shape figure 8
Certification UL ,ROHS,SGS
Fiber SM/MM/OM3/OM4
Fiber Core 2-24 core
Jacket Material PE /LSZH/PU
Laying method Pipeline/Overhead/Direct bury/Duct
keywords outdoor fiber optic cable
Color Black or customized
Fiber brand Corning, LS, etc
Fire Resistant Yes
Armored or not Corrugated steel tape armored



Fiber Colour Code:

01- Blue 04- Brown 07- Red 10- Purple

02- Orange 05- Grey 08- Black 11- Pink

03- Green 06- White 09- Yellow 12- Aqua

The colour arrangement of optical fiber is specified in the fiber colour code

S: short term; L: long term; L.T: loose tube

Crush load: N/100mm; D: cable diameter

GY: outdoor cable;T: jelly compound; C8: Figure 8 cable

Y: PE outer sheath

Duct Non Metallic Fiber Optic Cable 4-144 Core Stranded Outdoor Cable 0Duct Non Metallic Fiber Optic Cable 4-144 Core Stranded Outdoor Cable 1
