| Place of Origin: | China |
|---|---|
| Brand Name: | Yiyuan |
| Certification: | OHSAS 18001, ISO 14001, ISO 9001 |
| Minimum Order Quantity: | 1KM |
| Price: | Negotiation |
| Packaging Details: | Wood coil strand |
| Delivery Time: | 30 working days after received your payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500000km/month |
| Product Name: | Armored Fiber Optic Cable | Fiber Count: | 2-288 Core |
|---|---|---|---|
| OEM: | Accepted | Application: | Outdoor Duct |
| Jacket Material: | PE PVC LSZH HDPE | Brand Name: | Yiyuan |
| Certification: | ISO 9001;ISO 14001;OHSAS 18001 | Color: | Black Or Customized |
| Strength Member: | Steel Wire | Place Of Origin: | China |
| Installation: | Self-supporting Aerial | Package: | Plywood Reel/customized |
| High Light: | 795kg/km heavy duty armoured cable,22.3mm heavy duty armoured cable,subsea fiber optic cable |
||

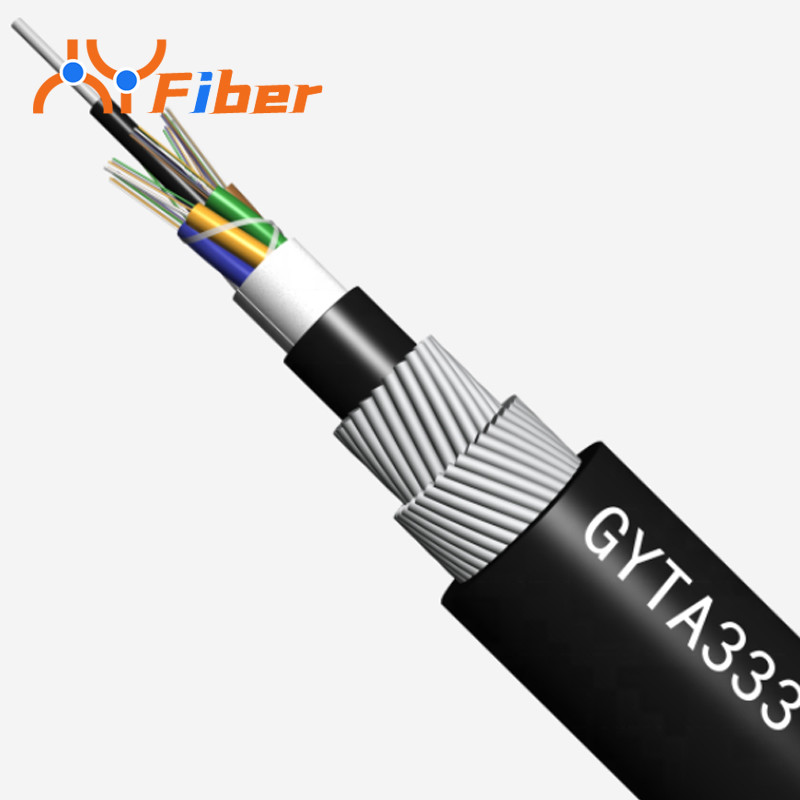

795kg/Km Subsea Fiber Optic Heavy Duty Armoured Cable GYTA5333 4-144 Core Single Mode
| Basic parameters: | |||
| Country of Origin | China | Product name | armored fiber optic cable |
| Brand name | Yiyuan | Type | GYTA5333 |
| Fiber count | 4-144 core | Fiber mode | Single mode G652D |
| Weight | 261-795kg/km | Outer diameter | 14.2-22.3mm |
| Structure |
Loose tube stranded; Multi armor and multi jacket(sheath) |
Strength member |
Aluminum tape; Corrugated steel tape; Round steel wire |
| Sheath material | PE | Strength member | Phosphating steel wire |
| Operation temperature | -20~+60℃ | ||
| Other optional fiber | 9/125: G652D,G657 50/125 62.5/125 | ||
A-class optical fiber provide the high performance of transmission; PBT loose tube material has good hydrolysis resistance, the tube is filled with special ointment to protect the optical fiber; Phosphating steel wire as strength member to improve the good tensile strength performance; With good temperature characteristics; PE sheath anti-UV Three layers of armor and jacket,moisture-proof, crush resistant,durable;
