| Place of Origin: | China |
|---|---|
| Brand Name: | Yiyuan |
| Certification: | OHSAS 18001, ISO 14001, ISO 9001 |
| Minimum Order Quantity: | 1KM |
| Price: | Negotiation |
| Packaging Details: | Wood coil strand |
| Delivery Time: | 30 working days after received your payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500000km/month |
| Product Name: | GYXTW Fiber Optic Cable | Number Of Cores: | 4-12 Core |
|---|---|---|---|
| Outer Sheath Material: | PVC PE | OEM: | Accepted |
| Application: | Outdoor Duct/outdoor Cable/aerial/lashed | Brand Name: | Yiyuan |
| Certification: | ISO 9001;ISO 14001;OHSAS 18001 | Color: | Black Or Customized |
| Number Of Conductors: | ≥ 10 | Place Of Origin: | China |
| Installation: | Self-supporting Aerial | Package: | Wood Coil Strand |
| Fiber Type: | Single Mode | Strength Member: | Steel Wire |
| Length: | 1km/2km/customized | ||
| High Light: | Single mode GYXTW Fiber Optic Cable,PE GYXTW Fiber Optic Cable,rodent proof cable |
||

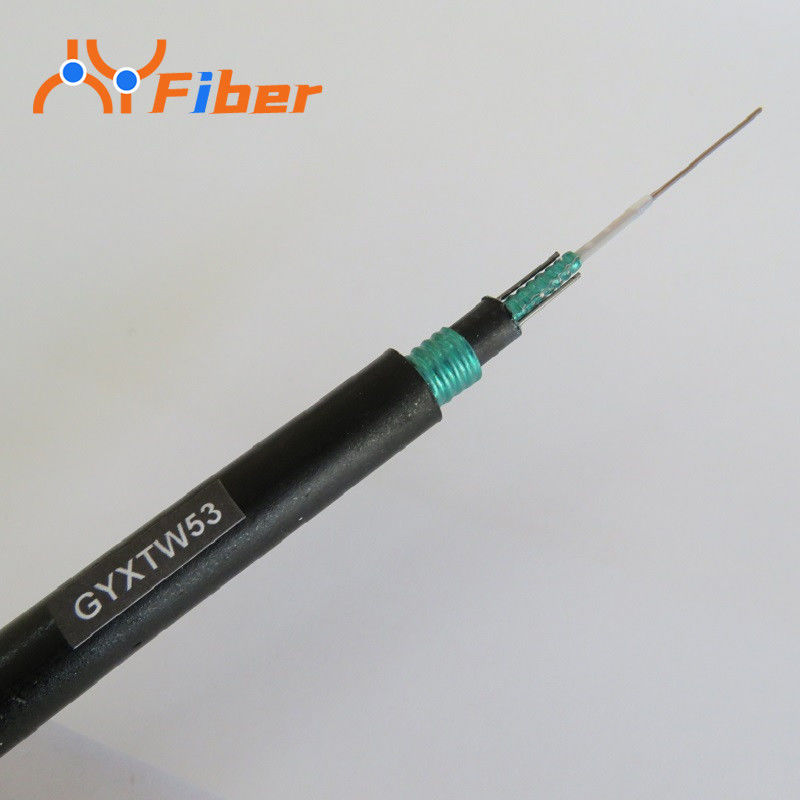

53-4B1 GYXTW Fiber Optic Cable Center Beam Tube Double Sheath Rodent Proof
Product Description
In the GYTY53 cable, single-mode/multimode fibers are positioned in the loose tubes, the tubes are filled with water blocking filling compound.Tubes and fillers are stranded around the strength member into a circular cable core. Then the cable is completed with a PE sheath. Which is filled with the filling compound to protect it. After PSP is applied over the inner sheath, the cable is completed with a PE outer sheath.
Specification
|
Cable Type (Increased by 2 fibers) |
Fiber Count |
Tubes + Fillers |
Fiber in Tube |
Cable Diameter mm |
Cable Weight kg/km |
Tensile Strength Long/Short Term N |
Crush Resistance Long/Short Term N/100mm |
| GYTY53 2 ~36 | 2 ~36 | 6 | 6 | 12.6 | 184 | 1000/3000 | 1000/3000 |
| GYTY53 38 ~ 72 | 38 ~ 72 | 6 | 12 | 14.0 | 216 | 1000/3000 | 1000/3000 |
| GYTY53 74 ~ 96 | 74 ~ 96 | 8 | 12 | 15.7 | 260 | 1000/3000 | 1000/3000 |
| GYTY53 98 ~ 120 | 98 ~ 120 | 10 | 12 | 17.4 | 301 | 1000/3000 | 1000/3000 |
| GYTY53 122 ~ 144 | 122 ~ 144 | 12 | 12 | 19.0 | 354 | 1000/3000 | 1000/3000 |
| GYTY53 144 ~ 288 | 144 ~ 288 | 18 | 12 | 19.0 | 350 | 1000/3000 | 1000/3000 |
Characterisics
1. Excellent mechanical and temperature performance guaranteed by the accurate excess fiber length.
2. Critical protection to fibers.
3. Excellent crush resistance and flexibility.
4. The following measures are taken to ensure the water blocking performance of the cable:
- Single steel wire used as the central strength member
- Special water-blocking filling compound in the loose tube.
PSP moisture barrier
- 100% cable core filling and water-blocking material
