| Place of Origin: | China |
|---|---|
| Brand Name: | Yiyuan |
| Certification: | OHSAS 18001, ISO 14001, ISO 9001 |
| Minimum Order Quantity: | 1KM |
| Price: | Negotiation |
| Packaging Details: | Wood coil strand |
| Delivery Time: | 30 working days after received your payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500000km/month |
| Product Name: | GYXTW Fiber Optic Cable | Number Of Cores: | 4-12 Core |
|---|---|---|---|
| Outer Sheath Material: | PVC PE | OEM: | Accepted |
| Application: | Outdoor Duct/outdoor Cable/aerial/lashed | Brand Name: | Yiyuan |
| Certification: | ISO 9001;ISO 14001;OHSAS 18001 | Color: | Black Or Customized |
| Number Of Conductors: | ≥ 10 | Place Of Origin: | China |
| Installation: | Self-supporting Aerial | Package: | Wood Coil Strand |
| Fiber Type: | Single Mode | Strength Member: | Steel Wire |
| Length: | 1km/2km/customized | ||
| High Light: | 1.0mm armored optical cable,2Core telecommunication cable,12Core telecommunication cable |
||
2 Core 12 Core Armored Telecommunication Cable GYXTW-4B1 Central Beam Tube Optical Cable
Introduction:

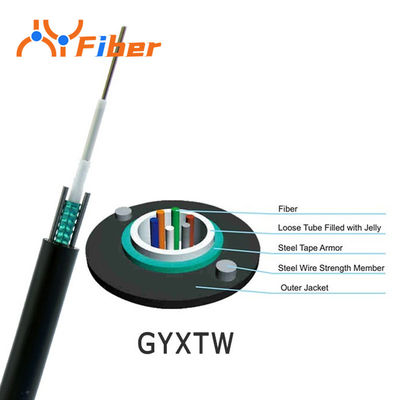

The fibers,125μm,are positioned in a loose tube made of a high modulus plastic.The tubes are filled with a waterresistant filling compound.The tube is wrapped with a layer of PSP longitudinally.Between the PSP and the loose tube waterblocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape.The cable is completed with a polyethylene (PE) sheath.
Fiber Parameters:
| No. | Items | unit | Specification | |
| 10G-300 | ||||
| 1 | Core Diameter | μm | 50.0±2.0 | |
| 2 | Cladding Diameter | μm | 124.8±1.0 | |
| 3 | Core Non-Circularity | % | ≤5.0 | |
| 4 | Cladding Non-Circularity | % | ≤1.0 | |
| 5 | Core-Cladding Concentricity Error | μm | ≤1.0 | |
| 6 | Coating Diameter | μm | 245±7 | |
| 7 | Coating Non-Circularity | % | ≤6.0 | |
| 8 | Cladding-Coating Concentricity Error | μm | ≤12.0 | |
| 9 | OFL Bandwidth | 850nm | MHz·km | ≥1500 |
| 1300nm | MHz·km | ≥500 | ||
| 10 | Attenuation Coefficient | 850nm | dB/km | ≤3.0 |
| 1300nm | dB/km | ≤1.0 | ||
Cable Parameters:
| Items | Specifications | |
| Fiber Count | 12 | |
| Colored Coating Fiber | Dimension | 250µm±15µm |
| Color |
Blue,Orange,Green,Brown,Gray,White,Red,Black,Yellow,Purple, Pink,Aqua |
|
| Loose Tube | Dimension | 2.5mm±0.05mm |
| Material | PBT | |
| Color | Natural | |
| Strength Member | Diameter | 1.0mm |
| Material | Steel Wire | |
| PSP | Diameter | 4.1 mm±0.1mm |
| Thickness | 0.45mm | |
| Outer Jacket | Dimension | 9.0mm±0.3mm |
| Material | HDPE | |
| Color | Black | |
Mechanical and Environmental Characteristics:
| Items | Unite | Specifications |
| Tension(Long Term) | N | 1000 |
| Tension(Short Term) | N | 2000 |
| Crush(Long Term) | N/10cm | 1000 |
| Crush(Short Term) | N/10cm | 3000 |
| Min. Bend Radius(Dynamic) | mm | 20D |
| Min. Bend Radius(Static) | mm | 10D |
| Installation Temperature | ℃ | -20~+60 |
| Operating Temperature | ℃ | -40~+70 |
| Storage Temperature | ℃ | -40~+70 |
