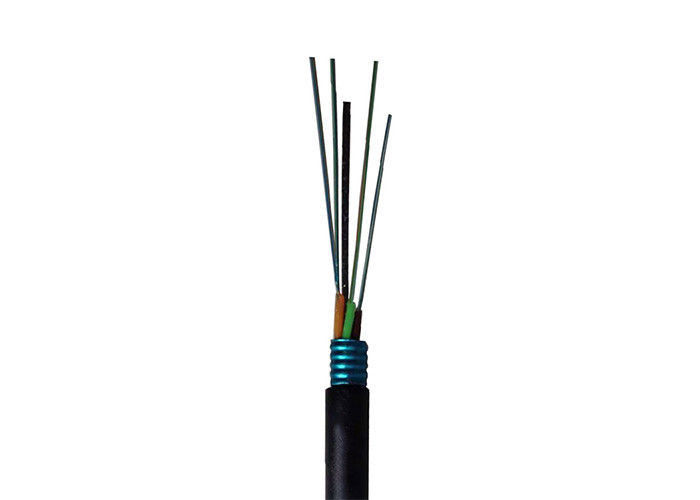

24core Tight Buffered Single Core Fiber Optic Cable Light Armored Strand Loose Tube

24core Tight Buffered Single Core Fiber Optic Cable Light Armored Strand Loose Tube

Description:

GYTS fiber optic cable is the outdoor cable type used for duct and aerial applications. singlemode GYTS fiber optic cable and multimode GYTS fiber optic cable. Fiber strand from 2 cores to 144 cores.

GYTS fiber optic cable featuer the good mechanical and temperature performance, it has high strength loose tube that is hydrolysis resistant. Its tube filling compound to ensure a critical fiber protection. PE sheath protects cable from ultraviolet radiation. GYTS cables use the steel wire as the central strength member, 100% cable core filling and APL moisture barrier can ensure the cable watertight.we make custom GYTS cables with different cable core numbers, cable jacket types and jacket colors.

Structure:

• Loose tube stranding,
• Metal strength member,
• Flooding jelly compound,
• Steel-polyethylene adhesive sheath.

Characteristics:

1. The fiber, Φ250µm, are positioned in a loose tube made of a high modulus plastic
2. Tubes are filled with a water-resistant filling compound
3. A steel wire, locates in the center of core as a metallic strength member
4. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core
5. The cable core is filled with filling compound to protect it from water ingress, over which a thin PE inner sheath is applied. After the PSP is longitudinally applied over the inner sheath. The cable is completed with a PE outer sheath.

Technical Parameters:

Note:

• D refers to the cable diameter;
• The relevant technical Parameters can be adjusted according to the customer’s demands;
• The block water way can be adjusted according to the customer’ demands;
• To design flame resistance, anti-rodent, termite resistant cable according to customer’s demands.
