| Place of Origin: | China |
|---|---|
| Brand Name: | Yiyuan |
| Certification: | OHSAS 18001, ISO 14001, ISO 9001 |
| Minimum Order Quantity: | 1KM |
| Price: | Negotiation |
| Packaging Details: | Wood coil strand |
| Delivery Time: | 30 working days after received your payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500000km/month |
| Product Name: | Armored Fiber Optic Cable | Fiber Count: | 2-288 Core |
|---|---|---|---|
| OEM: | Accepted | Outer Sheath: | PE/HDPE/AT |
| Brand Name: | Yiyuan | Certification: | ISO 9001;ISO 14001;OHSAS 18001 |
| Color: | Black Or Customized | Installation: | Self-supporting Aerial |
| High Light: | 24core armored single mode fiber,48core armored single mode fiber,Polyethylene outdoor fiber optic cable |
||
24 Core Outdoor Armored Single Mode Fiber Cable Over Head Black UV Polyethylene

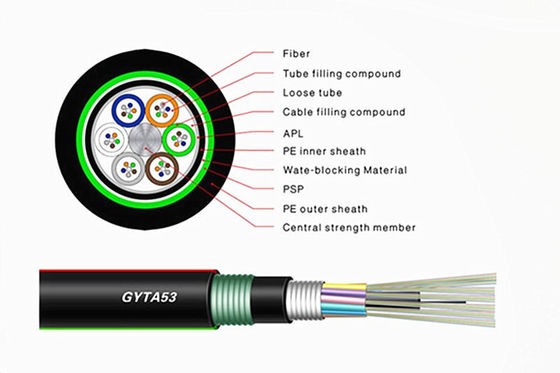

GYTA53 The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic.The tubes are filled with a water-resistant filling compound.A steel wire,sometimes sheathed with polyethylene (PE)for cable with high fiber count,locates in the center of core as a metallic strength member. Tubes(and fillers) are stranded around the strength member into a compound to protect it from water ingress.Then,the cable is completed with a PE sheath.
| Fiber Num. | Outer diameter (mm) | Weight (kg/km) | Tension (N) | Crash loading (N/100mm) | ||
| Short term | Long term | Short term | Long term | |||
| 2-30 | 12.9 | 160 | 3000 | 1000 | 3000 | 1000 |
| 32-60 | 13.4 | 175 | ||||
| 62-72 | 14.1 | 204 | ||||
| 74-84 | 15.4 | 245 | ||||
| 86-96 | 15.4 | 245 | ||||
| 98-120 | 17.2 | 285 | ||||
| 122-144 | 19 |
334 |
||||
Amoured: steel tape
Fiber core: 2~144 cores
Application: Duct and Aerial
Jacket: PE material, black color
Corrugated steel Center Strength member
Mode: Single mode, Multimode
Good mechanical and temperature performance
High strength looes tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Specially designed compact structure is good at preventing loose tubes from shrinking
PE sheath protects cable from ultraviolet radiation
The following measures are taken to ensure the cable watertight:
Steel wire used as the central strength member
Loose tube filling compound
100% cable core filling
APL moisture barrier
