Product Details
Place of Origin: China
Brand Name: ODM/OEM
Certification: ISO9001-2000, RoHS, CE
Payment & Shipping Terms
Minimum Order Quantity: 1000 meters
Price: Negotiation
Packaging Details: 2km/Drum
Delivery Time: 10-20days
Payment Terms: T/T, Western Union
Supply Ability: 2000km/Month
Model Number: |
Figure 8 |
Type: |
Outdoor Fiber Optic Cable |
Number Of Conductors: |
≥ 10 |
Product Name: |
GYTC8S Figure 8 Fiber Cable Cable |
Construction: |
Stranded Loose Tube |
Outer Jacket Material: |
PE(Black) |
Cable Diameter: |
6.5*10.5mm |
Mode: |
Singlemode G652D |
Armour: |
Steel Tape |
Tensile Strength (long/short Term): |
1000/3000N |
Fiber Count: |
4c 6c 8c 12c 24c |
Fiber Brand: |
Corning, OFS, YOFC |
Application: |
Aerial |
Keywords: |
Fiber Optic Cable Reel Price |
Installation: |
Self- Supporting Aerial |
Attenuation(max.): |
≤0.4 DB/km (1310nm), ≤0.3 DB/km (1550nm) |
Operating Temperature: |
20°C~+70°C |
Package Of Cable Fiber Optic: |
Wooden Bucket For Cable Fiber Optic |
Name: |
Outdoor Fiber Optic Cable |
Model Number: |
Figure 8 |
Type: |
Outdoor Fiber Optic Cable |
Number Of Conductors: |
≥ 10 |
Product Name: |
GYTC8S Figure 8 Fiber Cable Cable |
Construction: |
Stranded Loose Tube |
Outer Jacket Material: |
PE(Black) |
Cable Diameter: |
6.5*10.5mm |
Mode: |
Singlemode G652D |
Armour: |
Steel Tape |
Tensile Strength (long/short Term): |
1000/3000N |
Fiber Count: |
4c 6c 8c 12c 24c |
Fiber Brand: |
Corning, OFS, YOFC |
Application: |
Aerial |
Keywords: |
Fiber Optic Cable Reel Price |
Installation: |
Self- Supporting Aerial |
Attenuation(max.): |
≤0.4 DB/km (1310nm), ≤0.3 DB/km (1550nm) |
Operating Temperature: |
20°C~+70°C |
Package Of Cable Fiber Optic: |
Wooden Bucket For Cable Fiber Optic |
Name: |
Outdoor Fiber Optic Cable |

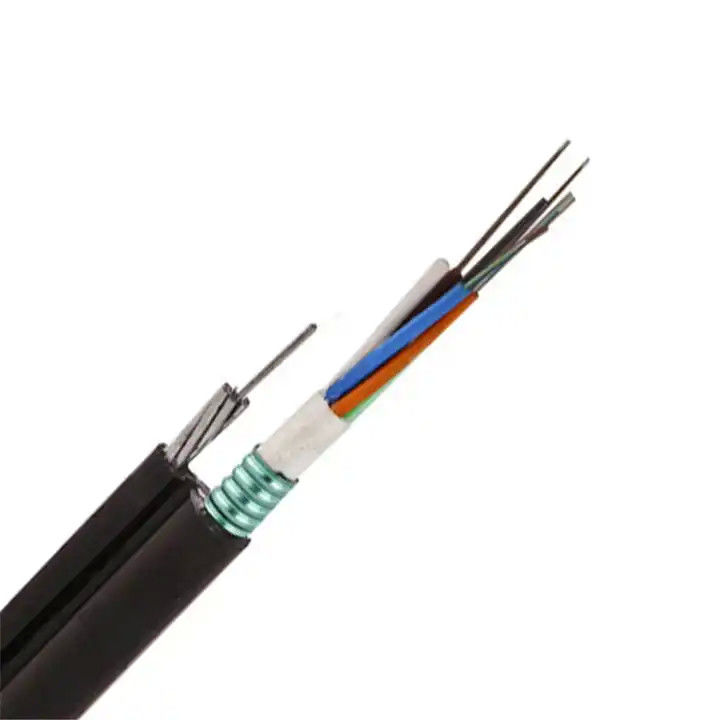

Figure 8 Self-Supporting Outdoor 6 36 144 Core Single Mode Fiber Optic Cable
GYTC8S is an outdoor use optical fiber cable suitable for duct and aerial applications. We supply GYTC8S fiber optic cable from 2 fiber cores to 12 fiber cores. Both single mode type and multimode types are available.
·The fibers, 260μm, are positioned in a loose tube made of a high modulus plastic.
· The tubes are filled with a water-resistant filling compound.
· The tube is wrapped with a layer of corrugated steel tape longitudinally.
· Between the corrugated steel tape and the loose tube water-blocking material is applied to keep the cable compact and watertight.
· Two parallel steel wires are placed at the two sides of the steel tape.
· The cable is completed with PE sheath.
1, Small cable diameter, cross section shows figure 8
2,Self-supporting stranded wires, easily to install
3,Low dispersion and attenuation
4,Excellent mechanical and environmental performance
5,Water blocking system to improve the water-proof ability
6,Steel-wire strength member ensures tensile strength
7,Corrugated steel tape armored and PE outer sheath improve crush resistance
8,Outdoor aerial application
9,Used for long-haul communication Used for LAN communication,Subscriber network systems,Junction communication systems,CATV & Computer networks system
|
Cable Type
|
Fiber Count
|
Cable Diameter mm
|
Cable Weight kg/km
|
Tensile Strength
|
Crush Resistance
|
Bending Radius
|
|
Long/Short Term
|
Long/Short Term
|
Static/Dynamic
|
||||
|
N
|
N/100mm
|
mm
|
||||
|
GYTC8S
|
2-30
|
9.8*18.5
|
166
|
2000/6000
|
300/1000
|
10D/20D
|
|
GYTC8S
|
32-48
|
10.6*19.3
|
180
|
2000/6000
|
300/1000
|
10D/20D
|
|
GYTC8S
|
50-60
|
10.6*19.6
|
190
|
2000/6000
|
300/1000
|
10D/20D
|
|
GYTC8S
|
62-72
|
11.3*20.3
|
217
|
2000/6000
|
300/1000
|
10D/20D
|
|
GYTC8S
|
74-84
|
12.7*21.7
|
252
|
2000/6000
|
300/1000
|
10D/20D
|
|
GYTC8S
|
86-96
|
12.7*21.7
|
252
|
2000/6000
|
300/1000
|
10D/20D
|
Ideal Solution by Using Figure 8 Self-supporting Cable
As the common see self-supporting aerial cables, figure 8 self-supporting aerial fiber optic cable are designed for easy and economical one-step installation and widely used in long haul and building network communication.
Brand Name: ODM/OEM
Model Number: Single Mode
Place of Origin: China
Certification: ISO9001-2000, RoHS, CE
Minimum Order Quantity: 1000 meters
Price: Negotiation
Packaging Details: 2km/Drum
Delivery Time: 10-20days
Payment Terms: T/T, Western Union
Supply Ability: 2000km/Month
Fiber Type: Single-mode Or Multi-mode
Length: Various Lengths
Application: Outdoor
Storage Temperature: -40℃~+85℃
Cable Color: Black
